SD5L14 : 5384

SD5L14 : 5384

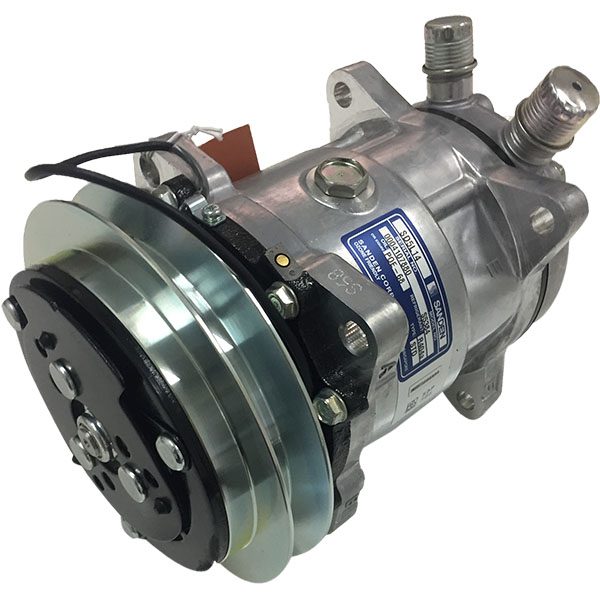

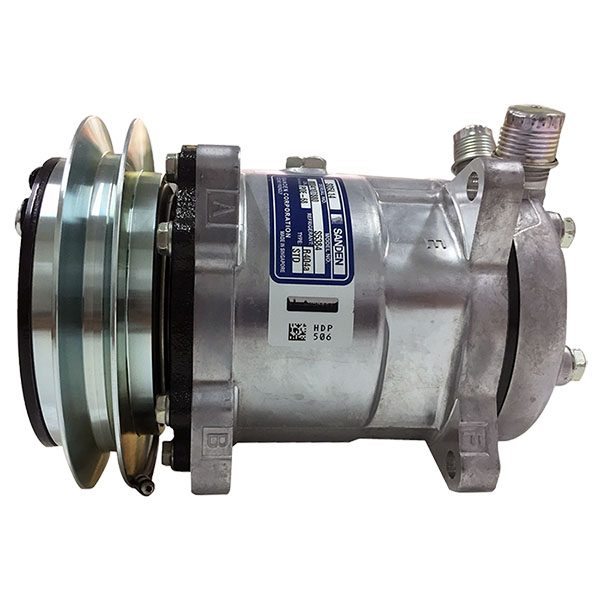

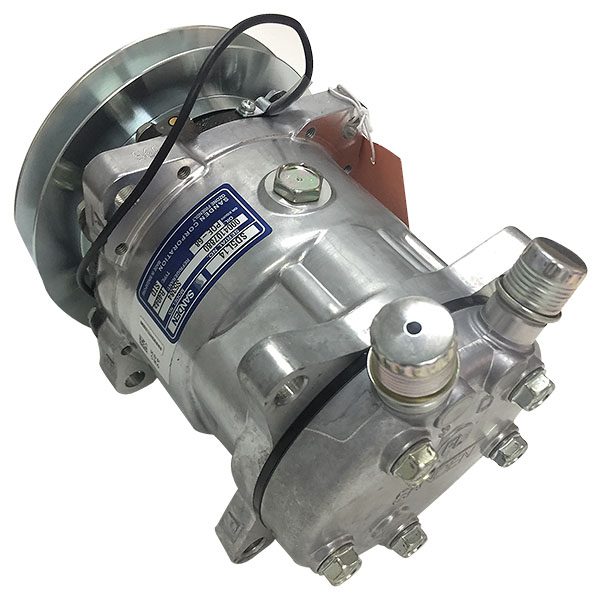

Description

SD5L14-5384
BOREØ 35 mm
STROKE28.6 mm
DISPLACEMENT PER REVOLUTIONS138 cc/rev
NUMBER OF CYLINDERS5
MAXIMUM ALLOWABLE r.p.m.4000 r.p.m.
MAXIMUM ALLOWABLE CONTINUOUS r.p.m.3000 r.p.m.
REFRIGERANTR-404a
OIL (MOBIL EAL ARCTIC 68 POE)0 cc
ROTATION (CLUTCH SIDE VIEW)CLOCKWISE
RATED VOLTAGEDC 12 V
BREAKAWAY TORQUE3.5 kg~m
MINIMUM ENGAGEMENT VOLTAGE7.5 V max
POWER CONSUMPTION50 w (AL)
MAXIMUM ALLOWABLE r.p.m.4000 r.p.m.
MAXIMUM ALLOWABLE CONTINUOUS r.p.m.3000 r.p.m.
BELT TYPEB1
PULLEY DIAMETERØ 152.4 mm
